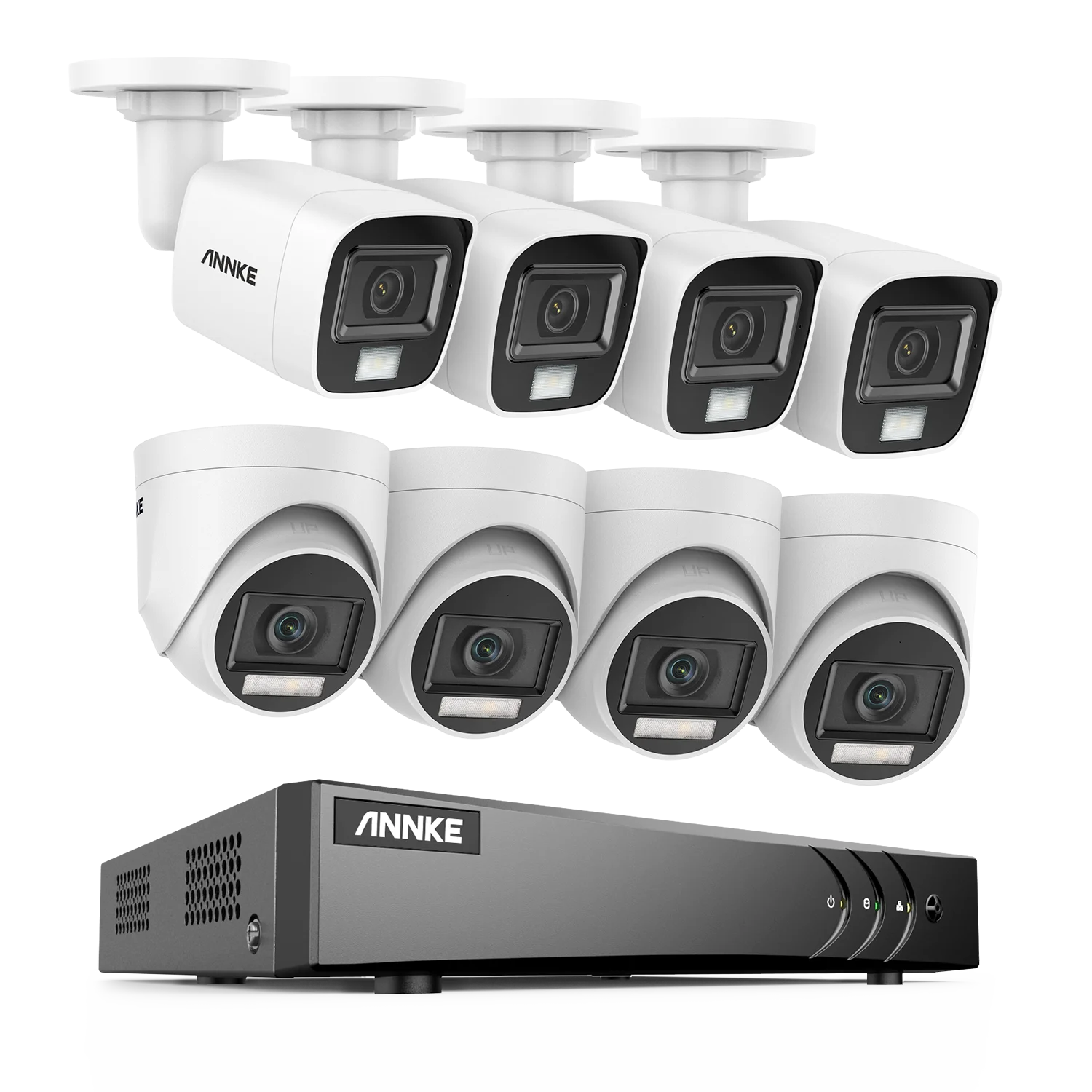

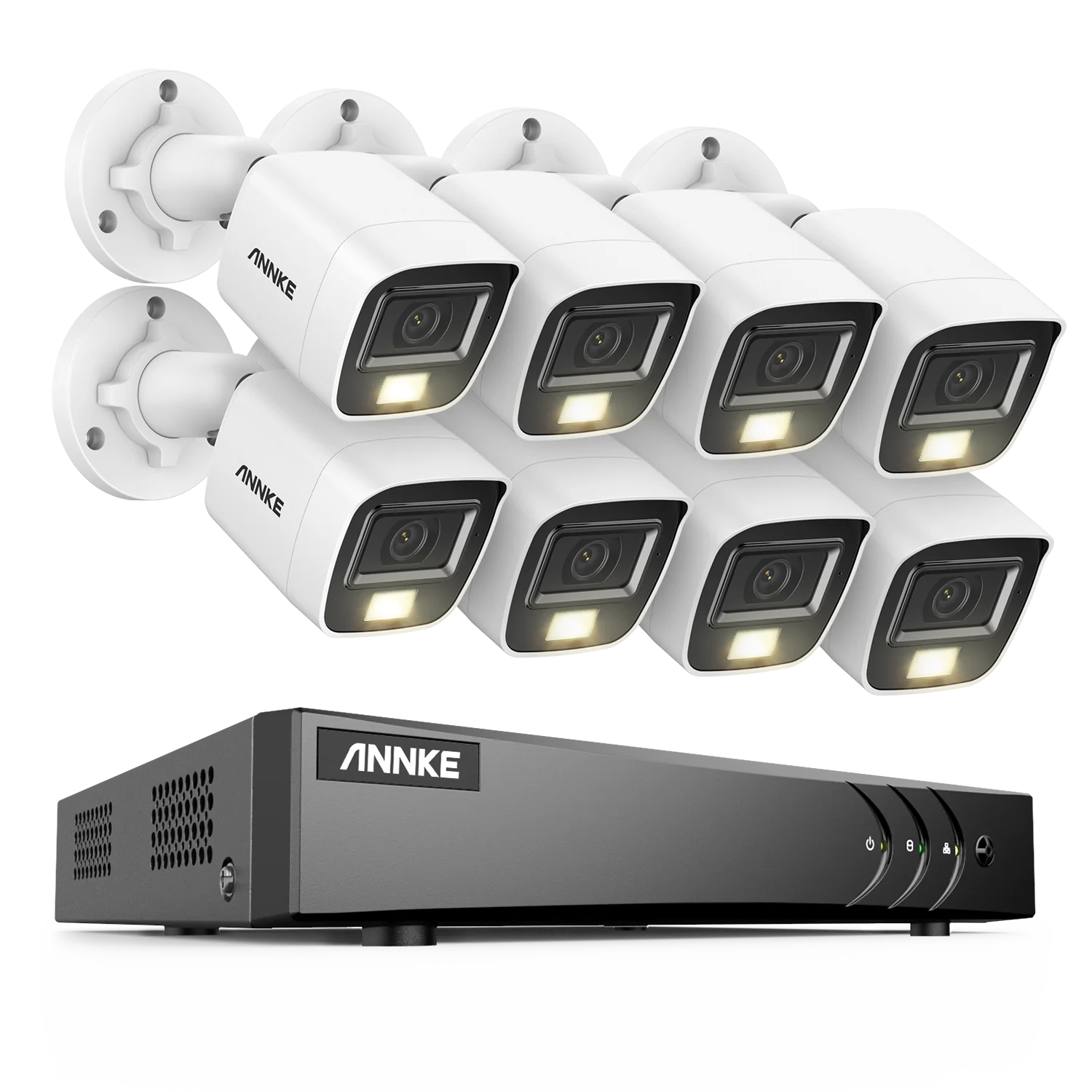

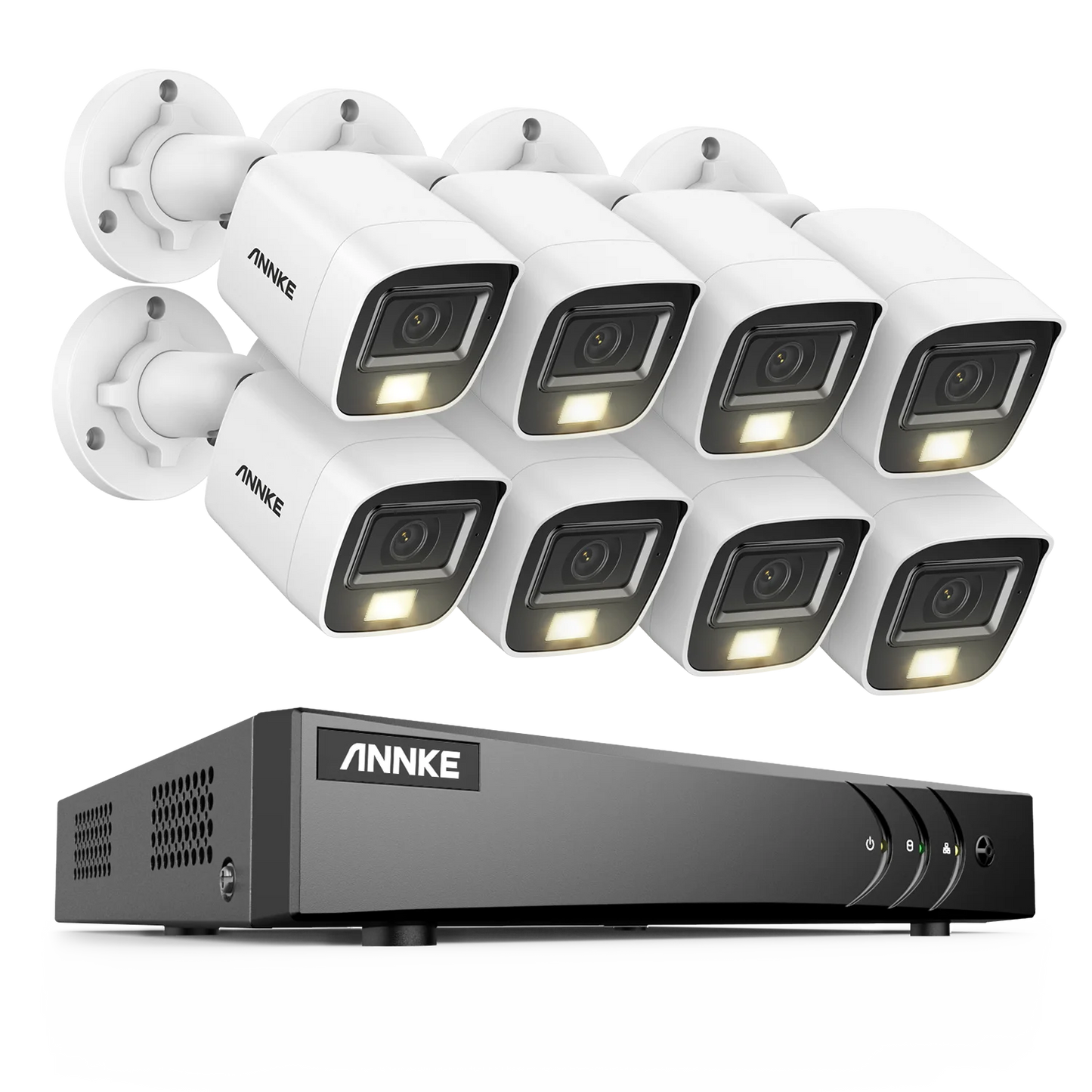

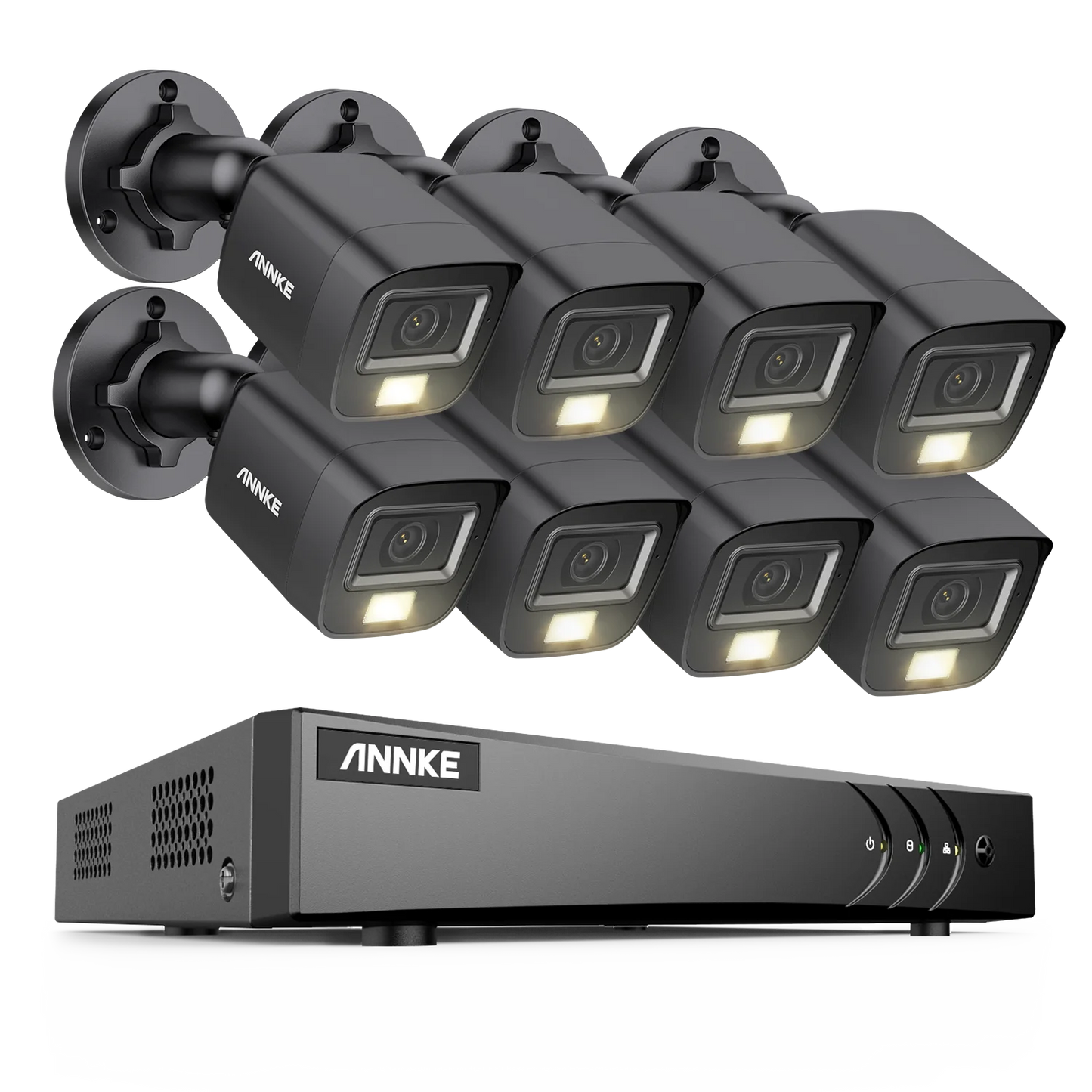

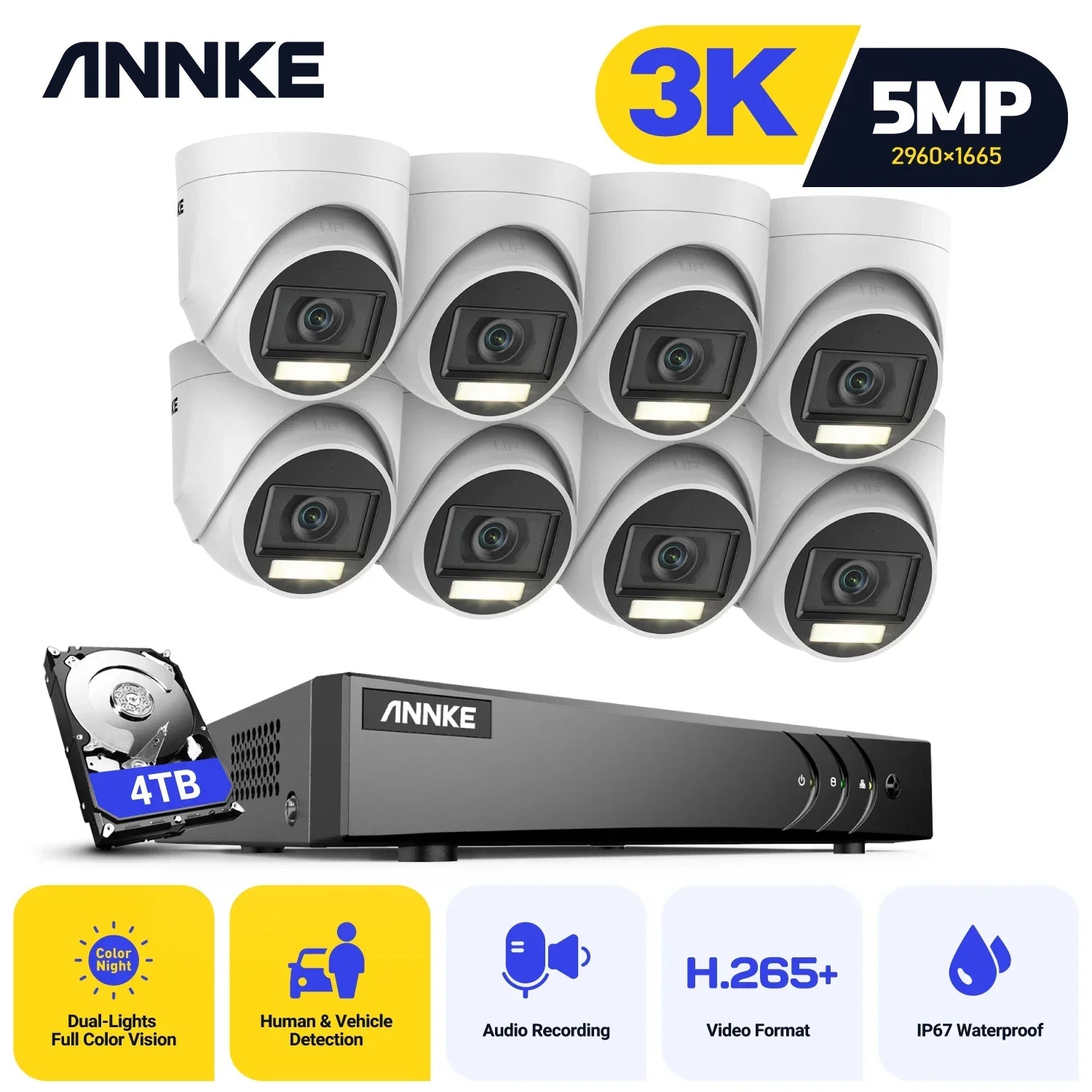

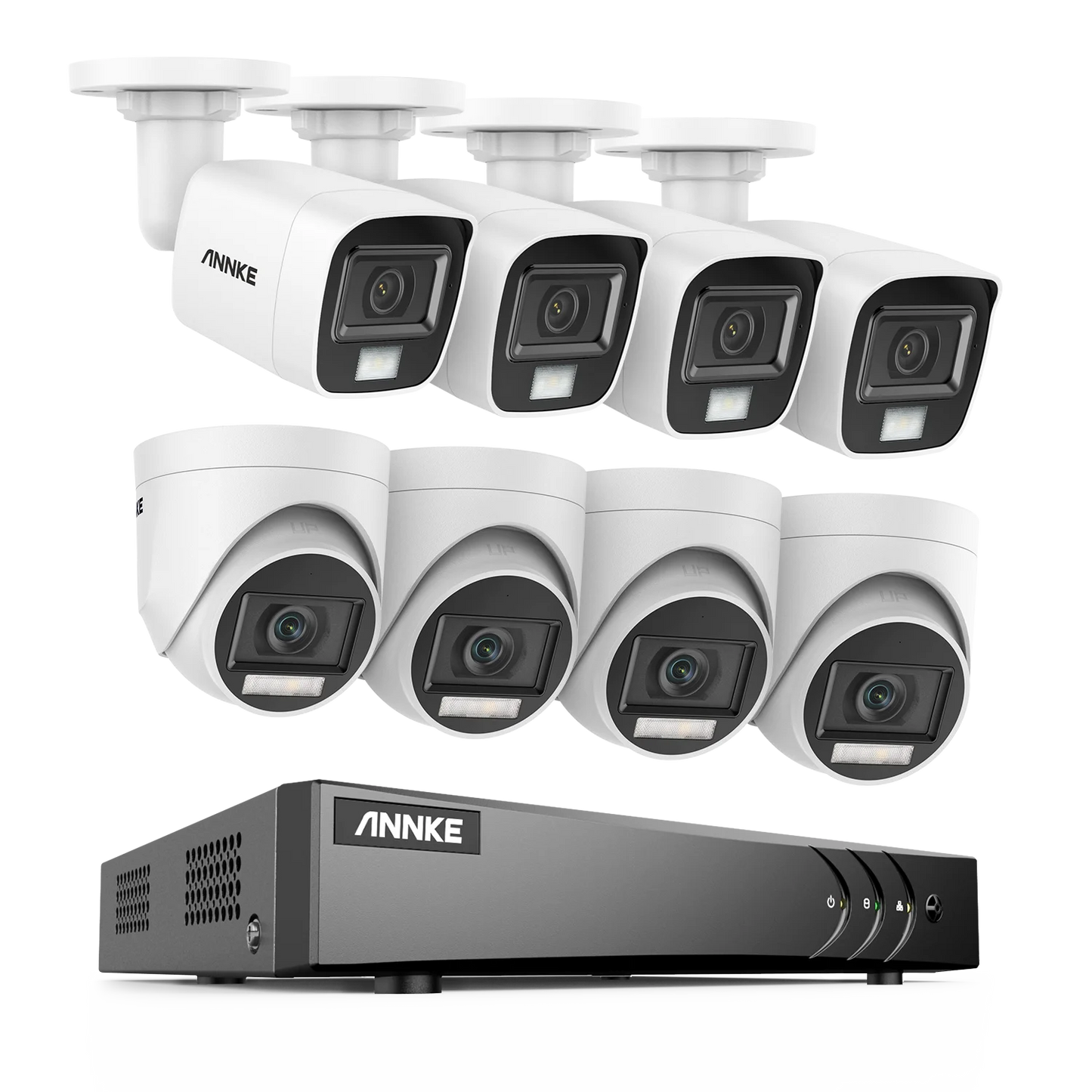

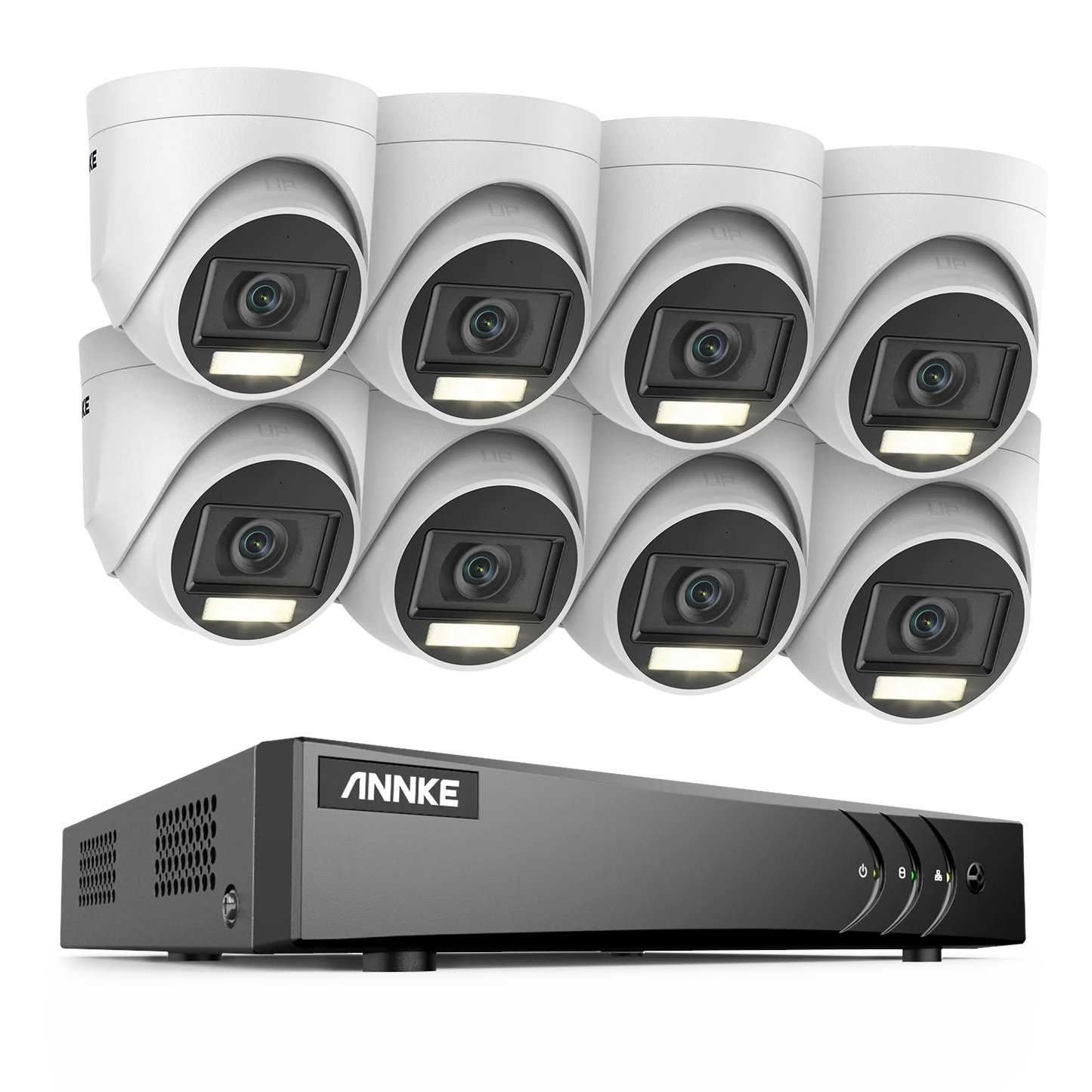

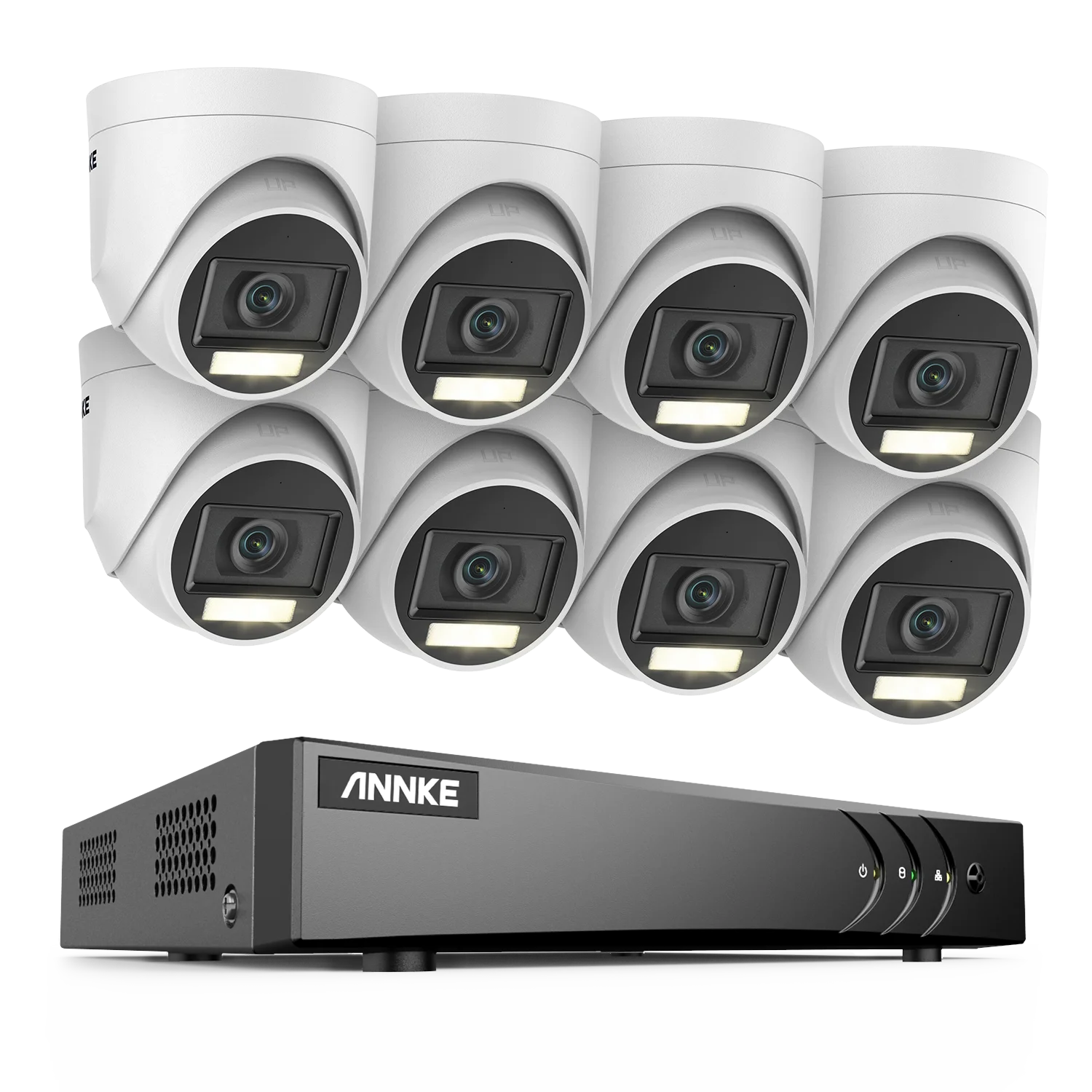

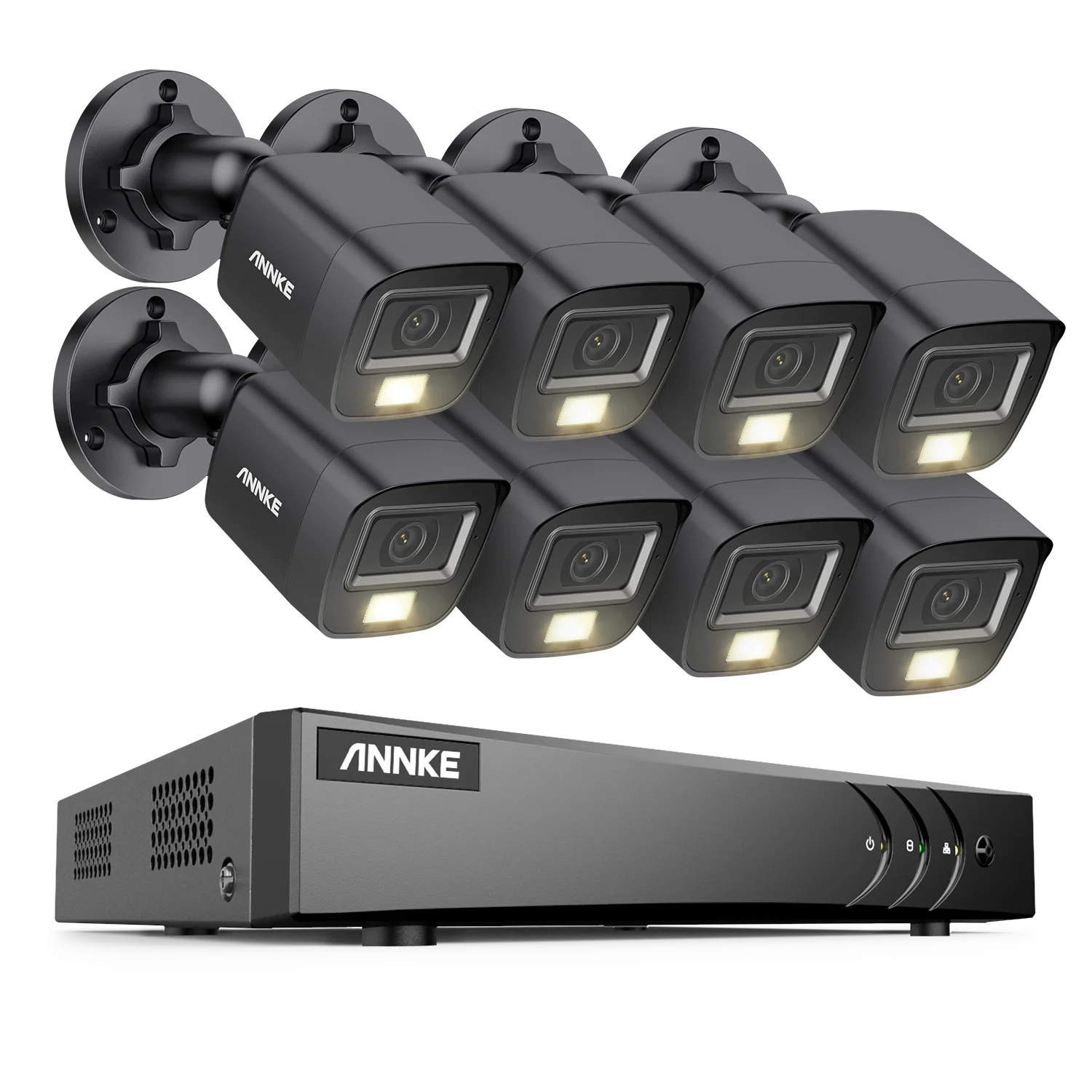

ANNKE 5MP DVR Security Camera System Kit With 8 Cameras
ANNKE 5MP DVR Security Camera System Kit With 8 Cameras
Couldn't load pickup availability
Protect what matters with the ANNKE 5MP DVR Security Camera System Kit, a complete eight-camera solution delivering crystal-clear detail, reliable recording, effortless monitoring, and scalable protection for your home or small business.
- Experience crisp 5MP footage with the H.265 Pro+ DVR, delivering sharp detail while using less storage.
- Eight outdoor cameras provide comprehensive coverage with reliable night vision, motion alerts, and weather resistance for year-round security.
- Wired connectivity ensures stable recordings and fast local playback without network downtime, plus simple setup across the kit.
- Expand later with compatible accessories to tailor your surveillance, keeping everything organized under a single, easy-to-manage system ready for future upgrades.
DVR | ||
Video & Audio |
Video Compression |
H.264+/H.264/H.265/H.265+ |
Video Input |
8CH Analog HD/Analog + 2CH IP Video (up to 12 channel when IP enhanced mode on) |
|
Video Output |
HDMI and VGA Up to 1080P |
|
Audio Input |
1-ch RCA,8-ch via coaxial cable |
|
Audio Output |
1-ch RCA |
|
Supported Camera Types |
Support HD TVI Input: 3K/5MP@20FPS, 4MP, 3MP, 1080p, 720p; |
|
Analog HD Playback Resolution |
3K Lite/5MP Lite/4MP Lite@12fps,1080p/720p@15fps |
|
IPC Playback Resolution |
Up to 6MP |
|
Max Playback Channel |
2-ch |
|
Protocols |
TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS |
|
Motion Detection 2.0 |
All analog channels support human and vehicle detection to reduce false alarm |
|
Hard Drive |
HDD |
1 SATA interface |
HDD Capacity |
Up to 10TB capacity |
|
External Interface |
Network interface |
1, RJ45 10M/100M self-adaptive Ethernet interface |
USB |
USB2.0x2 |
|
General |
Operating Power |
DC12V,≤ 12W (without HDD) |
Working Temperature |
-14 °F – 131 °F /-10 °C – 55 °C |
|
Dimensions(W x H x D) |
260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch) |
|
Weight (without hard disk) |
≤ 1 kg (2.2 lb)(without HDD) |
|
Analog HD Camera | ||
Camera |
Image sensor |
3K CMOS Image sensor |
Video Resolution |
2960 (H) × 1665 (V)(16:9) |
|
Signal System |
PAL/NTSC |
|
Frame Rate |
TVI: 3K@20 fps, 4 MP@25 fps/30 fps, 1080p@25 fps/30 fps |
|
Lens |
2.8mm |
|
Min.Illumination |
Color:0.01 Lux @ (F1.2,AGC ON),0 Lux with IR |
|
Angle of View |
Horizontal FOV: 107°, vertical FOV: 64°, diagonal FOV: 129° |
|

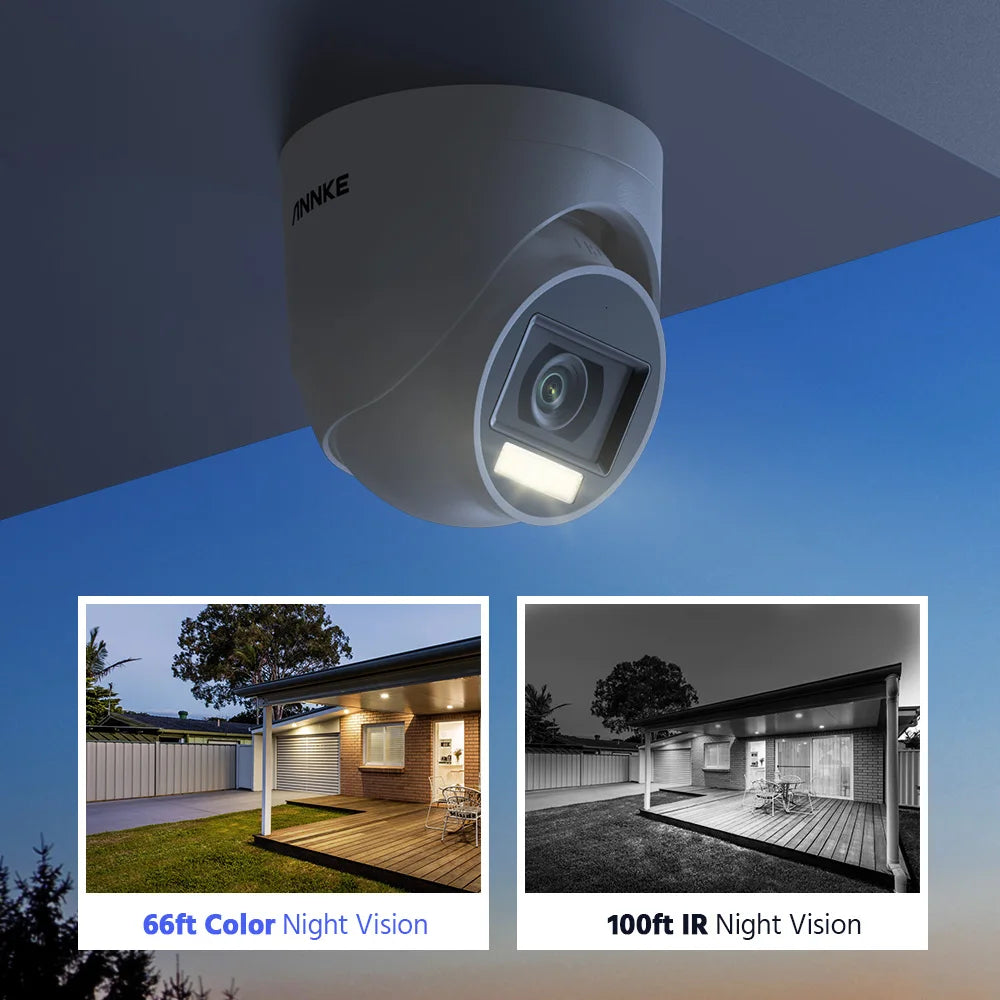

Supplement Light type |
1 white Light & 1 EXIR |
|
Supplement Light Range |
IR: Up to 30 m, white Light: Up to 20 m |
|
Supplement Light Mode |
IR light works normally, and it switches to white light when human or vehicle are detected at night. |
|
Wide Dynamic Range |
Digital WDR |
|
Audio |
Built-in mic |
|
IR Cut Filter |
Yes |
|
Video Output |
BNC, switchable TVI/AHD/CVI/CVBS |
|
General |
Housing |
Matal & Plastic |
Color |
White |
|
Operating Power |
12 VDC ± 25% |
|
Consumption |
Max. 2.9 W |
|
Operating Temperature |
-40 °F – 140 °F /-40 °C – 60 °C |
|
Indoor/Outdoor |
Indoor/Outdoor |
|
Weatherproof Rating |
IP67 |
|
Dimension (L x W x H) |
80 mm × Ø 85.1 mm (3.1" × Ø 3.4") |
|
Weight |
Approx. 300 g (0.66 lb.) |
|
